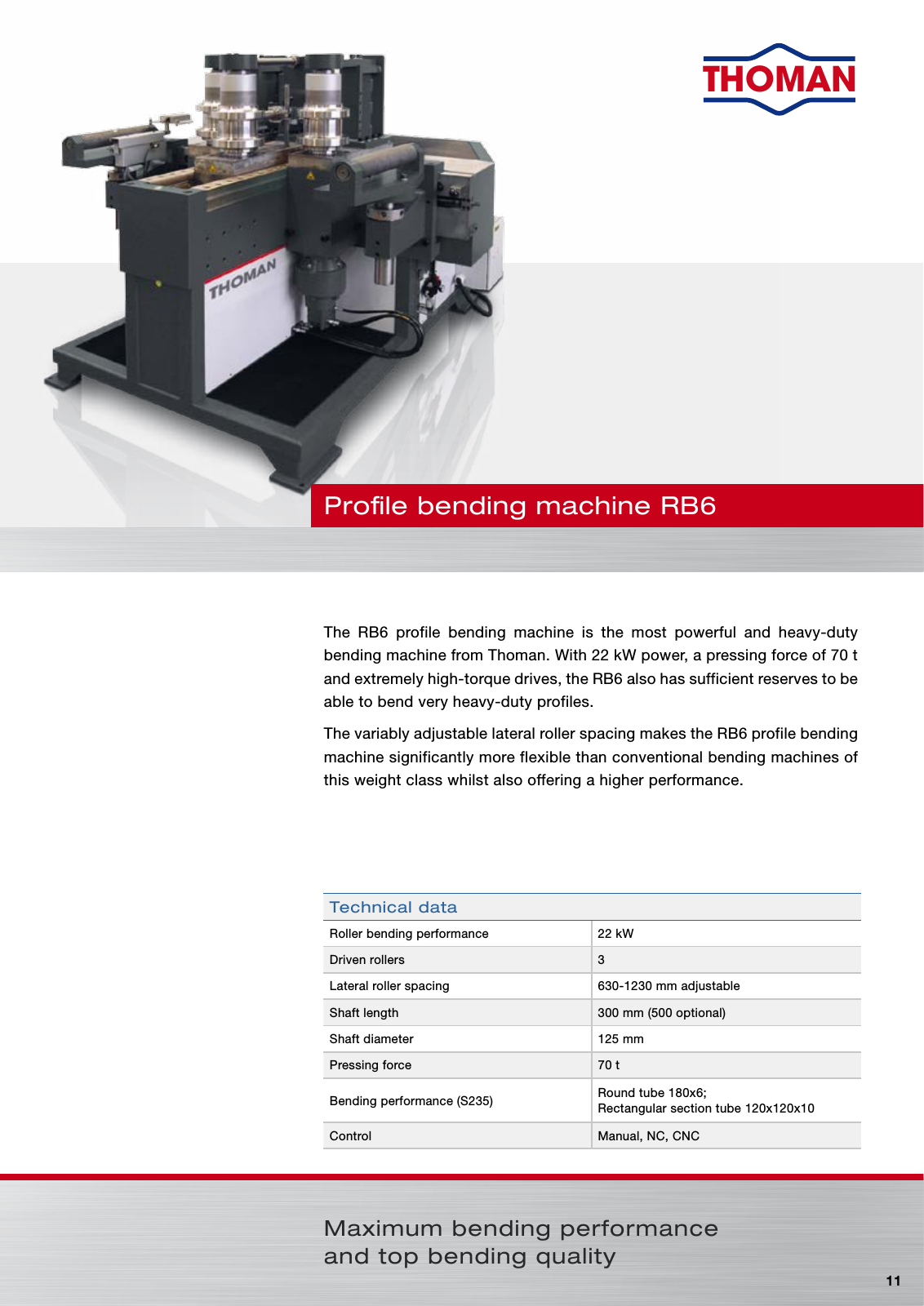

11 THOMAN Maximum bending performance and top bending quality Profile bending machine RB6 The RB6 profile bending machine is the most powerful and heavy duty bending machine from Thoman With 22 kW power a pressing force of 70 t and extremely high torque drives the RB6 also has sufficient reserves to be able to bend very heavy duty profiles The variably adjustable lateral roller spacing makes the RB6 profile bending machine significantly more flexible than conventional bending machines of this weight class whilst also offering a higher performance Technical data Roller bending performance 22 kW Driven rollers 3 Lateral roller spacing 630 1230 mm adjustable Shaft length 300 mm 500 optional Shaft diameter 125 mm Pressing force 70 t Bending performance S235 Round tube 180x6 Rectangular section tube 120x120x10 Control Manual NC CNC
