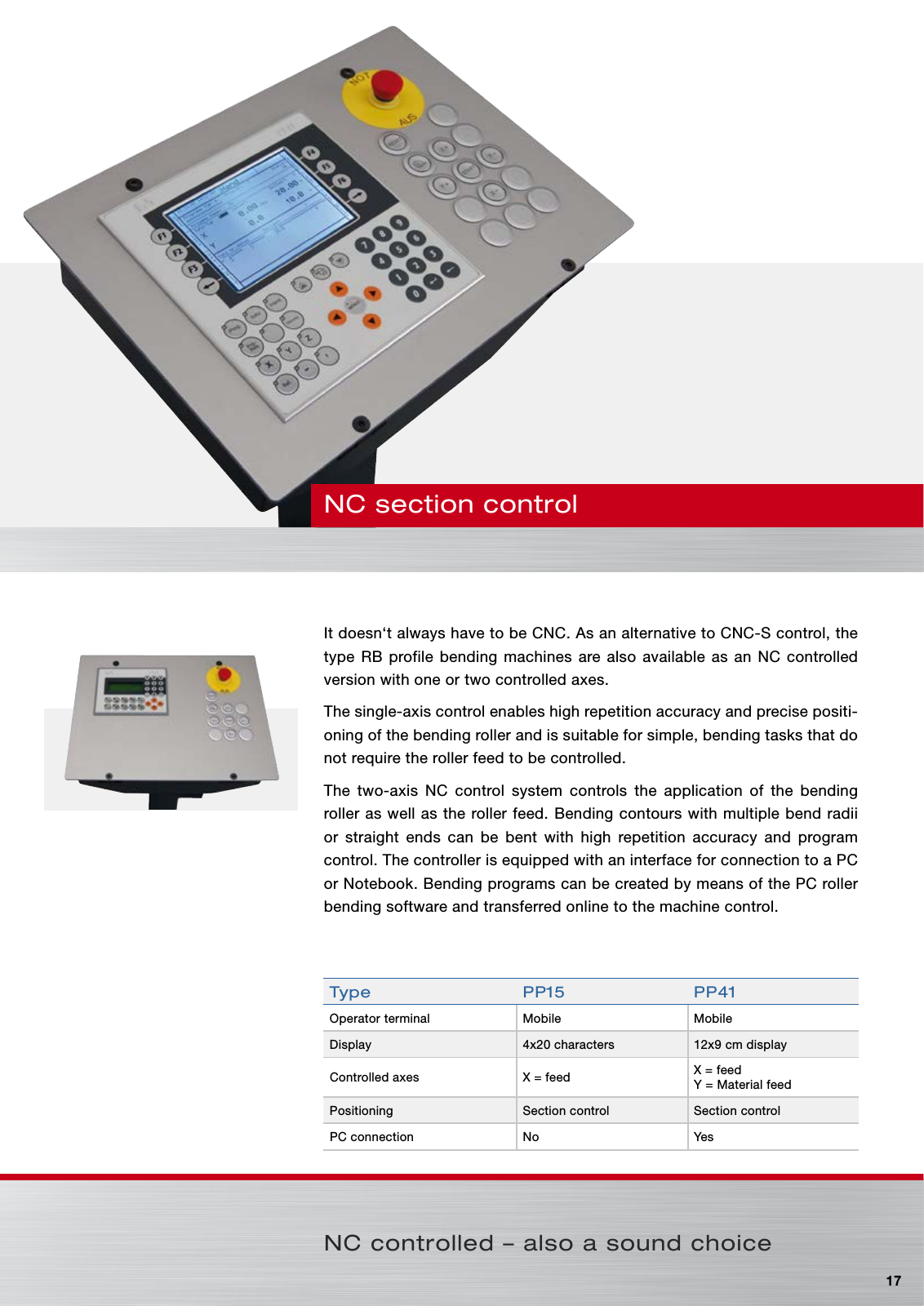

17 NC controlled also a sound choice NC section control It doesn t always have to be CNC As an alternative to CNC S control the type RB profile bending machines are also available as an NC controlled version with one or two controlled axes The single axis control enables high repetition accuracy and precise positi oning of the bending roller and is suitable for simple bending tasks that do not require the roller feed to be controlled The two axis NC control system controls the application of the bending roller as well as the roller feed Bending contours with multiple bend radii or straight ends can be bent with high repetition accuracy and program control The controller is equipped with an interface for connection to a PC or Notebook Bending programs can be created by means of the PC roller bending software and transferred online to the machine control Type PP15 PP41 Operator terminal Mobile Mobile Display 4x20 characters 12x9 cm display Controlled axes X feed X feed Y Material feed Positioning Section control Section control PC connection No Yes
