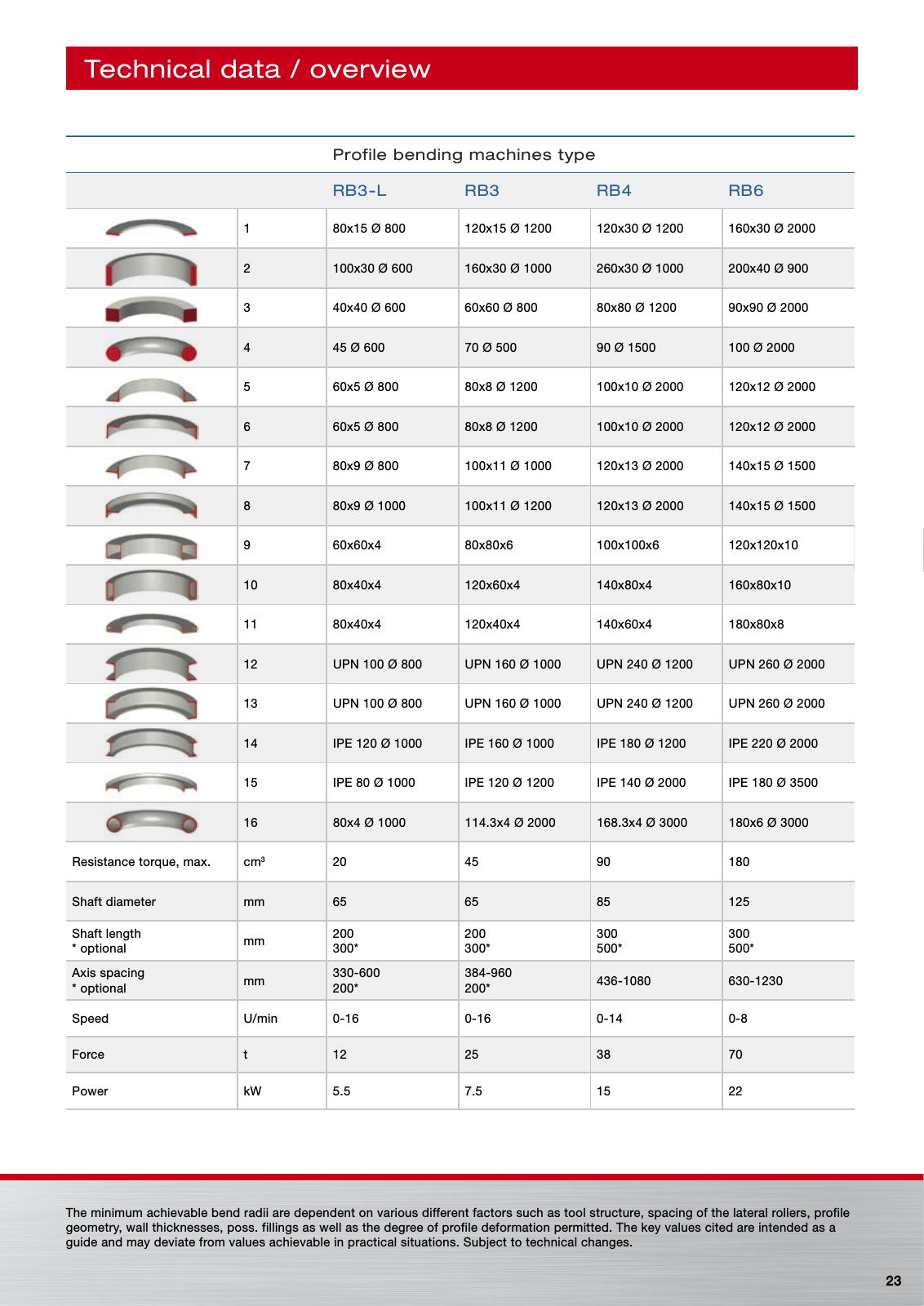

23 Technical data overview Profile bending machines type RB3 L RB3 RB4 RB6 1 80x15 Ø 800 120x15 Ø 1200 120x30 Ø 1200 160x30 Ø 2000 2 100x30 Ø 600 160x30 Ø 1000 260x30 Ø 1000 200x40 Ø 900 3 40x40 Ø 600 60x60 Ø 800 80x80 Ø 1200 90x90 Ø 2000 4 45 Ø 600 70 Ø 500 90 Ø 1500 100 Ø 2000 5 60x5 Ø 800 80x8 Ø 1200 100x10 Ø 2000 120x12 Ø 2000 6 60x5 Ø 800 80x8 Ø 1200 100x10 Ø 2000 120x12 Ø 2000 7 80x9 Ø 800 100x11 Ø 1000 120x13 Ø 2000 140x15 Ø 1500 8 80x9 Ø 1000 100x11 Ø 1200 120x13 Ø 2000 140x15 Ø 1500 9 60x60x4 80x80x6 100x100x6 120x120x10 10 80x40x4 120x60x4 140x80x4 160x80x10 11 80x40x4 120x40x4 140x60x4 180x80x8 12 UPN 100 Ø 800 UPN 160 Ø 1000 UPN 240 Ø 1200 UPN 260 Ø 2000 13 UPN 100 Ø 800 UPN 160 Ø 1000 UPN 240 Ø 1200 UPN 260 Ø 2000 14 IPE 120 Ø 1000 IPE 160 Ø 1000 IPE 180 Ø 1200 IPE 220 Ø 2000 15 IPE 80 Ø 1000 IPE 120 Ø 1200 IPE 140 Ø 2000 IPE 180 Ø 3500 16 80x4 Ø 1000 114 3x4 Ø 2000 168 3x4 Ø 3000 180x6 Ø 3000 Resistance torque max cm3 20 45 90 180 Shaft diameter mm 65 65 85 125 Shaft length optional mm 200 300 200 300 300 500 300 500 Axis spacing optional mm 330 600 200 384 960 200 436 1080 630 1230 Speed U min 0 16 0 16 0 14 0 8 Force t 12 25 38 70 Power kW 5 5 7 5 15 22 The minimum achievable bend radii are dependent on various different factors such as tool structure spacing of the lateral rollers profile geometry wall thicknesses poss fillings as well as the degree of profile deformation permitted The key values cited are intended as a guide and may deviate from values achievable in practical situations Subject to technical changes
