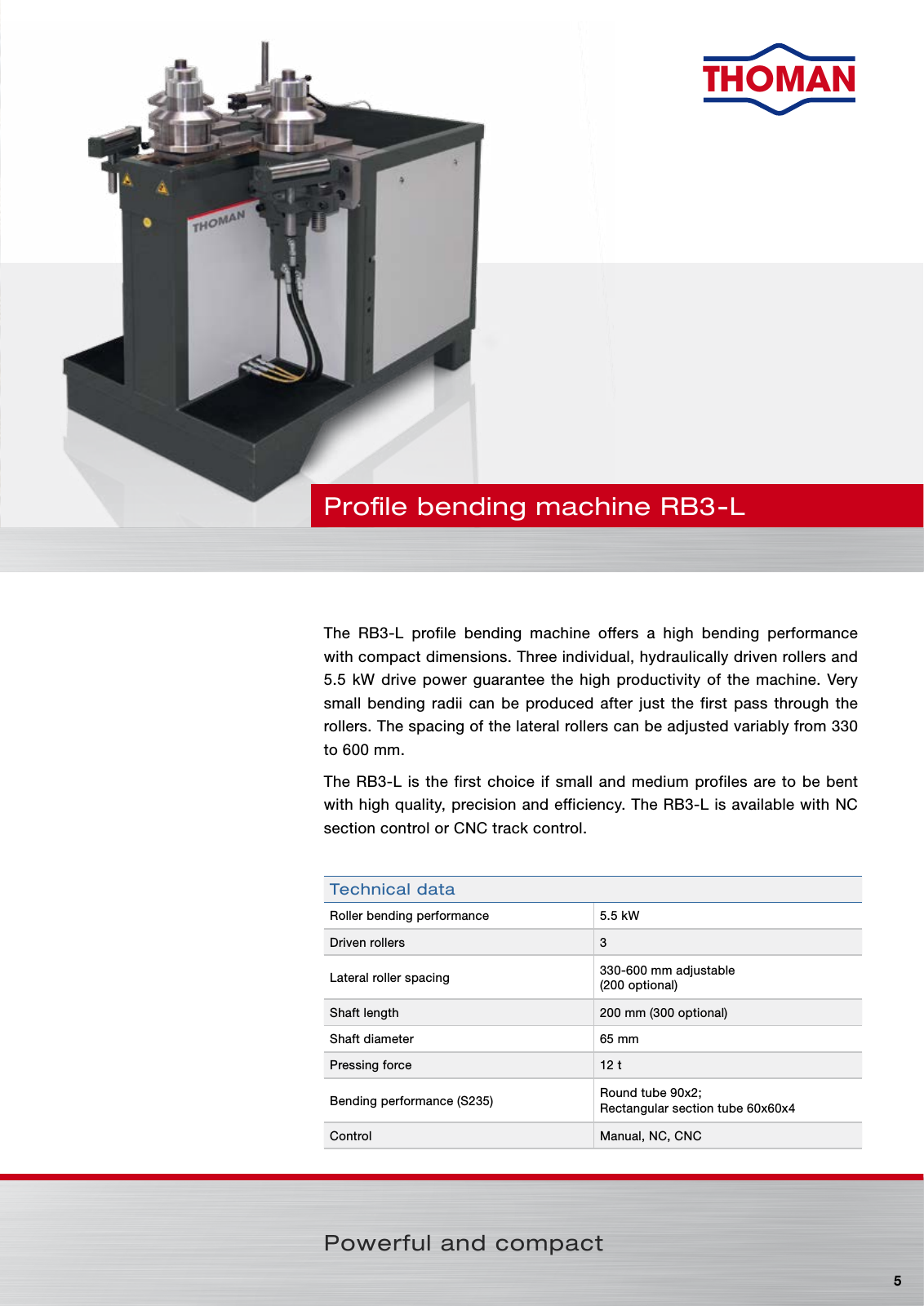

5THOMAN Powerful and compact Profile bending machine RB3 L The RB3 L profile bending machine offers a high bending performance with compact dimensions Three individual hydraulically driven rollers and 5 5 kW drive power guarantee the high productivity of the machine Very small bending radii can be produced after just the first pass through the rollers The spacing of the lateral rollers can be adjusted variably from 330 to 600 mm The RB3 L is the first choice if small and medium profiles are to be bent with high quality precision and efficiency The RB3 L is available with NC section control or CNC track control Technical data Roller bending performance 5 5 kW Driven rollers 3 Lateral roller spacing 330 600 mm adjustable 200 optional Shaft length 200 mm 300 optional Shaft diameter 65 mm Pressing force 12 t Bending performance S235 Round tube 90x2 Rectangular section tube 60x60x4 Control Manual NC CNC
